This product page offers better insights into Standard and Stand-Off Raman probes from IS-Instruments.
拉曼探针
Raman probes are specifically developed for coupling with HES spectrometers for Raman observations.
标准和僵持的拉曼探针
When the size of a sample seems to be large, in a risky or high-temperature setting, or for any reason, it is hard to bring to a spectrometer, a probe offers the perfect solution for obtaining real-time observations.
As far as Raman spectrometers are concerned, a Raman probe is utilized to quantify the inelastic scattering of light observed from a sample. Raman scattering is generated when the energy levels of photons are shifted up or down due to excitation by a monochromatic source (generally a laser).
振动频率的变化用于识别靶物质的组成。拉曼探针将激光浓缩在样品上，收集散射的光，然后将其馈回光谱仪。
The Raman probes are perfectly suited for coupling with IS-Instruments’ range of high etendue HES spectrometers. The company now provides two probes: the Standard Raman Probe developed for close or contact measurements, or the Stand-Off Raman Probe with the ability to make measurements from a distance of up to 3 m.
Image Credit: IS-Instruments
Product Specifications
阻止拉曼探测规格
下面列出的是标准RP1000给出的规格，但该单元可自适应功能在500至1500 mm的隔离距离之间。它也可以适应替代拉曼激发波长的功能。
表格1。Source: IS-Instruments
| Feature |
细节 |
| 拉曼操作λ |
785 nm |
| Configuration |
镜像晦涩和镜头组合共焦 |
隔离距离
（从直径100毫米） |
1000毫米 |
| Laser fiber connection |
FC/PC |
| Spectrometer fiber connection |
SMA |
| Dimensions |
L: 360 mm (inc. fiber gland) Max W: 140 mm |
| Mass |
~ 1.8 kg |
The fiber-coupled RP1000 Raman probe has been developed to work with the HES2000 spatial heterodyne Raman spectrometer. The probe functions at a 1000 mm stand-off distance from the 100 mm diameter window, thus enabling non-destructive investigation of target samples to arrest material-specific Raman spectra.
申请
-
可以在炼钢过程中执行质量控制
-
Deployment in nuclear settings
-
Composition monitoring in ceramics
-
识别加压气管中的液体
-
确定气管道中的多种气体物种

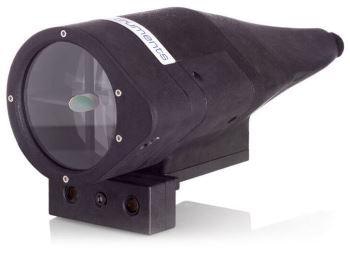

RP1000 Raman Probe for Stand-Off Measurements
IS-Instruments’ Stand-Off Raman probe has the potential to make measurements ranging from distances of up to 3 m from the target. The Stand-Off Raman Probes are equipped with the highest quality optical filters to inhibit any undesirable laser and have focal lengths ranging from 50 mm up to 3 m.
这些探针已经开发出具有具有匹配特性的HES光谱仪的ISI范围，并旨在减少不良的背景光。这使得最佳的光收集即使在距离处。
The company’s Stand-Off Raman probe can be attached to a robotic arm for deployment by ROV, which is perfect for remote sensing in dangerous settings. The Raman probe is at present being utilized in the nuclear decommissioning sector to eliminate the human element from the detection of substances in gloveboxes.
Front Panel Features
-
Continuous frame and single frame capture options are available
-
Frame averaging
-
带有FVB/2D模式
-
光谱叠加函数
-
Image, FFT and spectrum display options
-
Peak labeling is offered
-
Dark image subtraction
Spectra shown was captured in 1 second using a HES2000 Raman spectrometer coupled to an RP1000 Raman probe via a 0.22NA 910 µm optical fiber. A 105 µm fiber-coupled PDLD 500 mW, 785 nm laser was used to excite the target paracetamol tablet sample. Image Credit: IS-Instruments
标准拉曼探针
The fiber-coupled RP50 Raman probe has been developed to function with the HES2000 spatial heterodyne spectrometer. The probe functions at a 2 mm stand-off distance from the enclosure aperture and enables non-destructive investigation of target samples to collect material-specific Raman spectra.
The specifications given below are for the standard RP50. Users can get in touch for more details or customization options such as alternative Raman excitation operating wavelengths.
Image Credit: IS-Instruments
RP50 – Standard Raman Probe
Table 2.Source: IS-Instruments
| Feature |
细节 |
| 拉曼操作λ |
785 nm |
| Configuration |
基于二分色镜的共聚焦 |
隔离距离
(from enclosure aperture) |
25 mm |
| Laser fiber connection |
FC/PC |
| Spectrometer fiber connection |
SMA |
| Dimensions |
160 x 100 x 50毫米 |
| Mass |
<500 g |
Front Panel Features
Image Credit: IS-Instruments
-
Continuous frame and single frame capture options are available
-
光谱叠加函数
-
带有FVB/2D模式
-
Image, FFT and spectrum display options
-
Dark image subtraction
-
Peak Labeling
-
Frame averaging
