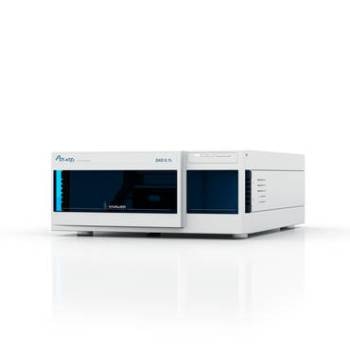

The AZURA DAD 6.1L from Knauer is a high-end diode array detector (DAD) which couples excellent performance with easy handling.
A broad range of easily exchangeable cartridge flow cells in this device makes it the right choice for quick, standard analytical, semi-preparative and preparative separations with bio-compatible or stainless steel wetted parts.
Advanced total reflection flow cells (LightGuide technology) are available for this device providing highest light throughput (because of total internal reflection) with limited peak dispersion (because of the small cell volume) to confirm an optimized S/N ratio.
An optional fiber optics adapter provides the possibility to separate the flow cell spatially from the device and thus enhancing security for toxic, hazardous, or explosive work processes, as well as protecting the device from leakages at high flow rates.
The recently developed optical unit with KNAUER Polka-Dot technology and intelligent temperature management guarantee highest sensitivity combined with limited baseline drift over the entire spectrum.
Moreover, easy frontal access and enhanced safety features enable easy lamp replacement. This eases maintenance and ensures short downtimes.
The DAD 6.1L is installed with a high brightness tungsten and deuterium halogen lamps, which span a wavelength range from 190 to 1000 nm. This detector can be regulated with ClarityChrom®, OpenLab®EZChrom Edition, Chromeleon®and PurityChrom®software, as well as from the Mobile Control software (stand-alone operation), via LAN or through analog input/output, allowing it to be combined into virtually any LC system.
Download the Brochure for More Information
Key Features
- User friendly
- Wide application range through variety of flow cells
- Data acquisition rate up to 100 Hz
- Extended wavelength range 190 – 1000 nm
- Impressive sensitivity/price ratio
- Leak management
- Optional touch display
