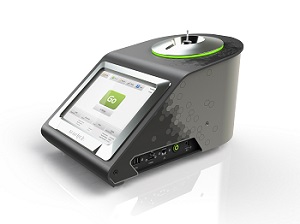

Nanalysis’ NMReady™ 60 Pro is an advanced NMR spectrometer that is specifically designed for industry customers with market-leading compact size and weight; advanced features and multi-nuclear support; and excellent return on investment. The instrument operates at 60MHz (1.4T) and provides a resolution of 1Hz and a sensitivity of 100:1 SNR (single scan, 1% ethylbenzene).
可以调整NMReady™60 Pro以获取许多传统自旋活性核的光谱，从而改善其用于定义广泛的合成产品和天然产物的使用。
The instrument's supported nuclei are1H，7Li,11B,13C,19F, and31P (dual-mode).
The spectrometer allows access to the pulse programming interface, allowing users to customize their own experiments or load or customize pre-existing experiment from a series of 1-D, relaxation, homo-and hetero-nuclear 2-D templates. This includes T1, T2, COSY, Nutation, DEPT, HETCOR, HSQC, signal suppression, and decoupling.
紧凑，便携式和节能
NMReady™60 Pro是一种多功能台式NMR光谱仪，轻巧，易于位置并且具有紧凑的足迹，可在任何地方，任何地方都易于使用。光谱仪可以插入标准电源插座中，并消耗最少的能量。当不使用时，可以将其设置为功率放电模式。
The NMReady™ 60 Pro can be used with standard 5mm NMR tubes and standard NMR sample volumes. In addition, the permanent magnet eliminates the need for cryogens and weekly servicing. Five Gauss lines are also contained in the enclosure.
NMReady at Boston College
Nanalysis Customer Testimonial: Benchtop NMR at Boston College
快速易于使用
The next-generation NMReady™ 60 Pro enhances workflow and thus increases research productivity. The sophisticated on-board software is customized for simple data acquisition and analysis.
许多预先存在的实验都用典型的参数概述了可以根据需要进行修改的典型参数。按需保存和加载标准NMR实验和数据收集以简化数据收集和分析。
Simple Reaction Monitoring
The onboard user interface helps in acquiring a single spectrum or multi-spectral data in a rapid way. Reaction monitoring, kinetics experiments, and speciation plots are made easy with simple manual integration cuts and plotting functions.
In addition, multiple connectivity options are available to export data that can later be printed and processed as required. Secure and accessible data is ensured through Wi-Fi, USB, Ethernet, secure login, and individual user profiles.
Configure, Acquire and Analyze
Preferred experiments can be selected and acquisition parameters can be altered from pop-up menus. After the configuration is over, data can be obtained by simply selecting "GO".
Once data is acquired, the initial scan is displayed which is updated every additional four scans. Additionally, advanced on-board data processing makes it quite easy to process and study 1-D, 2-D, and multi-spectral data. This spectral data is saved as standard .jdx files and can be used with a range of third party software tools.
Key Features
NMReady™60 Pro NMR光谱仪的主要功能包括：
- Compact and portable
- Energy-efficient
- Weighs only 55lbs
- Low maintenance
- Traditional sample preparation
- A limited stray magnetic field
- Utilizes standard 5mm NMR tubes
- Large 10" touch screen display
- 可以插入标准墙插座
- Decoupling and signal suppression
- 脉冲程序控制允许用户自定义自己的实验；另外，用户可以使用其中一个模板...舒适，部门，HSQC，T1, T2, Nutation, HETCOR
- Kinetics capabilities for simple reaction monitoring
- 网络打印
- Secure login and user profiles
- 导出到共享文件夹
- Internet-based support (optional)
Technical Specifications
The specifications of the NMReady™ 60 Pro NMR spectrometer are given in the table below:
|
|
| 工作频率： |
60 MHz（1.4 T） |
| Magnet: |
Permanent, no cryogens |
| 用户界面： |
内置触摸屏 |
| 核： |
1H，7Li,11B,13C,19F and31P (dual mode) |
| Lock: |
氘带非剥离选择 |
| 样本： |
Standard 5 mm NMR tubes |
| 兼容性： |
JCAMP-DX，Mestrab Mnova，Labview |
| Resolution: |
Line-width at 50% = 1 Hz |
| Sensitivity: |
100:1 (EtBz 1% single scan) |
| 流浪场： |
5 Gauss line contained within the enclosure |
| Operating Temp: |
18-26°C |
| Power: |
100-240 VAC, 50-60 Hz |
| Dimensions: |
12 x 11 x 19" (30 x 28 x 49 cm) |
| Weight: |
55 lbs (25 kg) |
