这3542RA averaging axial extensometers来自Epsilon的生产是用于在混凝土，岩石和其他大型压缩样品上进行抗压强度测试。
这些延伸仪能够测量测试样品相对侧的轴向应变，结果是两个读数的平均值。
Epsilonoffers gauge lengths from 1 to 8 in (25 to 200mm) and measuring ranges from 0.05 to 0.25 in (1.2 to 6mm) for customers.
3542RA延伸仪是应变装置的设备，因此使其适合于设计用于应变剂量传感器的任何电子产品。
这3542RA is offered with numerous configurations, and all versions are self-supporting on the specimen and can be mounted in a simple manner.
In tests where a single diameter specimen is generally used, the fixed diameter 3542RA1 is should be used. Likewise, for applications where a continuously adjustable diameter extensometer is needed, the 3542RA2 should be the ideal choice.
这basic configuration for these extensometers allows them to be used on samples from 2in to 6in (50 to 150mm). It is possible to provide two independent readings with two outputs. Several rock tests are performed using tri-axial pressure vessels.
Epsilon在200°C（400°F时为20,000PSI）提供了一些用于石油至1360bar的版本。这些能够安装在非常小的直径容器中。在小直径标本的情况下，Epsilon建议3442RA1平均轴向延伸计。
全部3542 RASTEMEMETER被构造为能够与3544圆周延伸计或3975直径延伸计一起工作。岩石延伸仪可以处理日常，大容量测试的严谨性。延期计中的圆锥点接触由碳化钨制成。
这3542RA averaging axial extensometers can be often connected to a test machine controller. The signal conditioning electronics needed for the extensometer is basically included with the test machine controller or can be added.
In this case, the extensometer is delivered with quality connector and wiring to allow direct plugging into the electronics. In case certain systems do not have the needed electronics,Epsiloncan provide many solutions, thereby allowing the extensometer output to be connected to chart recorders, data acquisition boards, or other equipment.
主要特征
这main features of the3542RA averaging axial extensometersinclude:
- 完整的桥，350Ω应变仪表设计，几乎与任何测试单元兼容
- 高精度，平均输出或可选的双重独立输出
- 全部basic units comply with existing ASTM class B-1 and ISO 9513, class 0,5 requirements for precision
- Sturdy, dual flexure design for strength and enhanced performance
- 提供高质量的泡沫衬里盒
- 易于安装，可以使用整体弹簧附加
- 在标本上自给自足
- Can be used simultaneously with 3975 diametral extensometer or 3544 circumferential extensometers
- 这3542RA1 version is configured for a single diameter size based on customer specification, and the 3542RA2 version works on sample diameters from 2in to 6in (50mm to 150mm)
Epsilon MODEL 3542RA Averaging Axial Extensometers

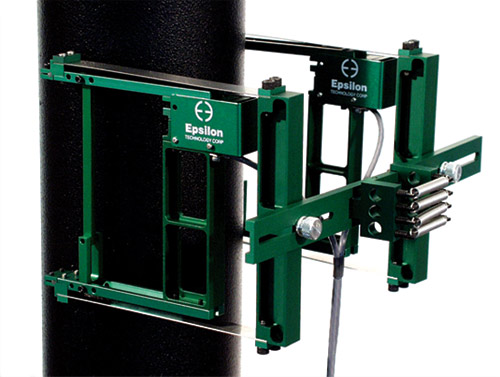

Model 3542RA2 Dual Averaging Rock and Concrete Extensometer

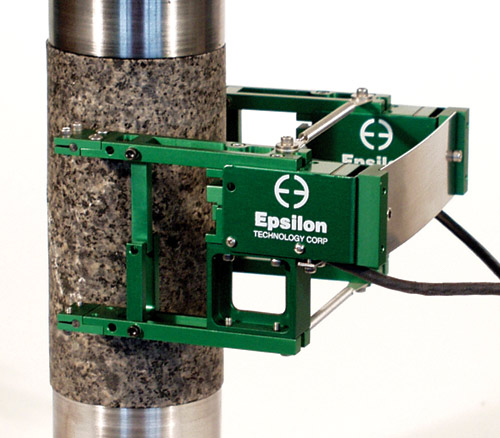

Model 3542RA1 extensometer
不同类型的3542RA
这3542RA averaging axial extensometers以下列出的量规长度，测量范围和温度范围的任何组合可用。公司要求在下订单时指定测试样品直径。还将考虑其他配置。
