The型号3442RA1微型平均轴向延伸计from Epsilon are strain gaged devices used for performing tensile or compressive strength tests on concrete, small rocks, and other small compression samples.
Using the model 3442RA1 extensometer, axial strain measurement is performed on the opposite sides of the test specimen. The average of two readings provides the output. The extensometer comes in different gauge lengths ranging from 25 to 50mm, and measuring ranges from 1.2 to 2.5mm for samples with 50mm or even smaller diameter.
Themodel 3442RA1可以轻松地安装并在测试样本上自支撑。它具有由碳化钨制成的圆锥点接触。根据要求，可以单独配置这两个切口以提供两个读数。Epsilon为机油应用提供了不同的版本，涉及在400°F时运行压力为20,000PSI。
The型号3442RA1伸展计are suitable for small inside diameter vessels, while the Model 3542RA averaging axial extensometers are recommended for large diameter specimens.
The model 3442RA1 extensometers can be used along with any electronics developed for strain gaged transducers. They are joined to a test machine controller, which includes the signal conditioning electronics designed for the extensometer.
Using the proper connector and wiring, the electronics can be directly linked to the extensometer. The system without the desired electronics makes use of Epsilon's different solutions to connect the output to the chart recorders, data acquisition boards, or other devices.

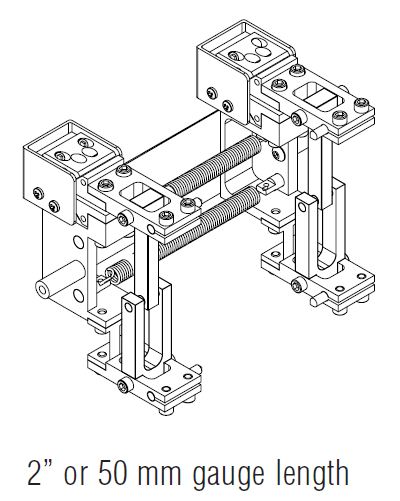

不同类型的模型3442RA1
The型号3442RA1伸展计are available in different gauge length, temperature, and measuring ranges as shown below:
Key Features
主要特征型号3442RA1伸展计包括：
- 在测试样本上自我支持
- Integral springs ensure easy mounting
- Full bridge, 350Ω strain gaged design provides compatibility with any test system
- Highly accurate averaging output or optional dual independent outputs
- 高质量的泡沫衬里表壳
- 专为较小直径标本而设计
- 坚固的双重弯曲设计可提供高强度和性能
- 标准单元符合ASTM B-1和ISO 9513的要求，0,5类，以提高准确性

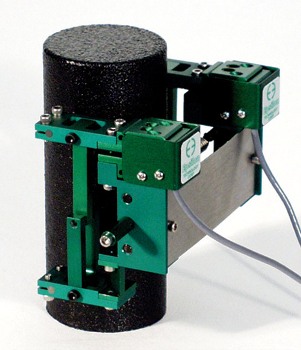

Epsilon型号3442RA1微型平均轴向延伸仪

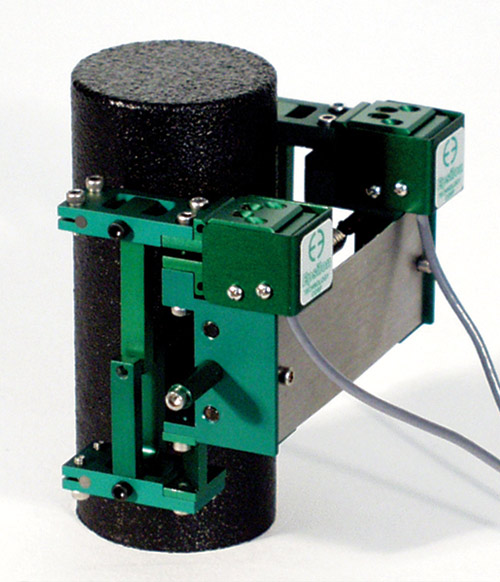

Model 3442RA1-0200-050T-ST with 2 inch gauge length and ±0.050 inch measuring range
可选功能
The following are some of the optional features provided with the型号3442RA1伸展计:
- Connectors interface the extensometer to any test devices
- Dual, independent outputs
